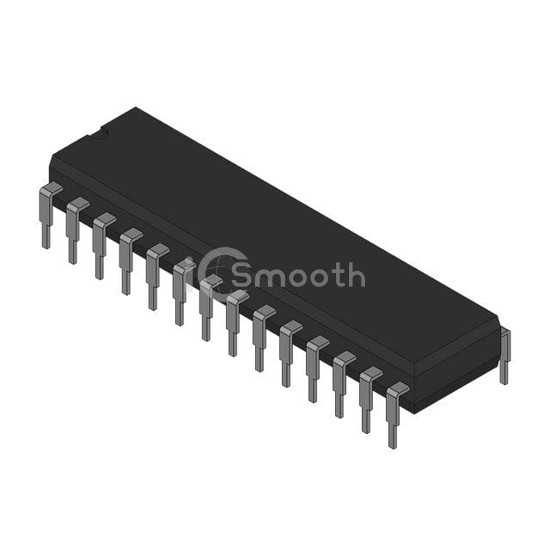

Name: HI1-0507A-5
Brand: Harris Corporation
SKU: HI1-0507A-5
Price: 11.63 USD
Availability: InStock

REF: HI1-0507A-5 Harris Corporation

HI1-0507A-5

4-CHANNEL ANALOG MUX

HI1-0507A-5 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Harris Corporation. 4-CHANNEL ANALOG MUX. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 75°C, package / case 28-CDIP (0.600", 15.24mm), number of circuits 2.

Datasheet Request a Quote

In Stock: 154

Specifications

18 parameters

Product Status	Active
Switch Circuit	8PST
Multiplexer/Demultiplexer Circuit	8:1
Number of Circuits	2
On-State Resistance (Max)	1.8kOhm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	±15V
Voltage - Supply, Dual (V±)	±15V
Switch Time (Ton, Toff) (Max)	300ns (Typ), 300ns (Typ)

-3db Bandwidth	-
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	5pF, 25pF
Current - Leakage (IS(off)) (Max)	30pA (Typ)
Crosstalk	-
Operating Temperature	0°C ~ 75°C
Mounting Type	Through Hole
Package / Case	28-CDIP (0.600", 15.24mm)
Supplier Device Package	28-CDIP
