Name: 2N6792TX
Brand: Harris Corporation
SKU: 2N6792TX
Price: 7.82 USD
Availability: InStock

REF: 2N6792TX Harris Corporation

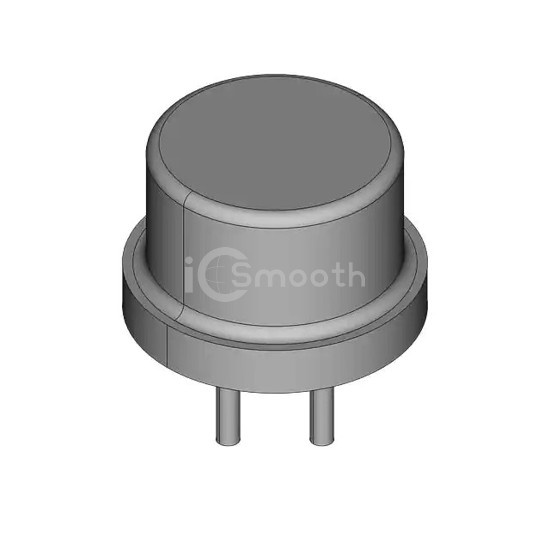

2N6792TX

2A, 400V, 1.8OHM, N-CHANNEL

2N6792TX is a Transistors - FETs, MOSFETs - Single manufactured by Harris Corporation. 2A, 400V, 1.8OHM, N-CHANNEL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-205AF Metal Can.

Datasheet Request a Quote

In Stock: 335

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	400 V
Current - Continuous Drain (Id) @ 25°C	2A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.8Ohm @ 1.25A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	600 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	20W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-205AF (TO-39)
Package / Case	TO-205AF Metal Can
