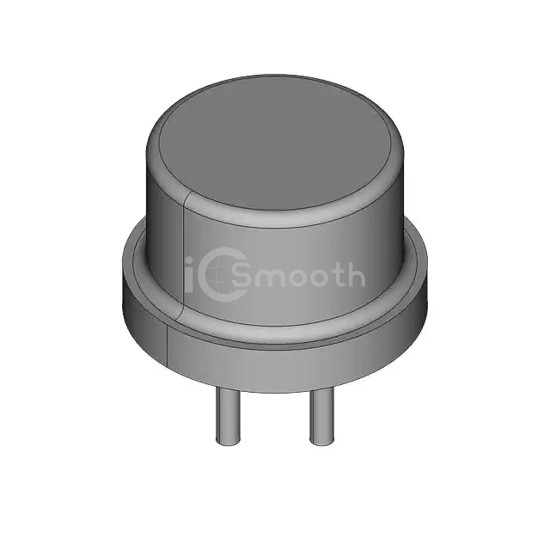

Name: 2N6756
Brand: Harris Corporation
SKU: 2N6756
Availability: InStock

REF: 2N6756 Harris Corporation

2N6756

N-CHANNEL POWER MOSFET

2N6756 is a Transistors - FETs, MOSFETs - Single manufactured by Harris Corporation. N-CHANNEL POWER MOSFET. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-204AA, TO-3.

Datasheet Request a Quote

In Stock: 5,647

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	14A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	210mOhm @ 14A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	35 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	-
FET Feature	-
Power Dissipation (Max)	4W (Ta), 75W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-204AA
Package / Case	TO-204AA, TO-3
