Name: G70N04T
Brand: Goford Semiconductor
SKU: G70N04T
Price: 0.99 USD
Availability: InStock

REF: G70N04T Goford Semiconductor

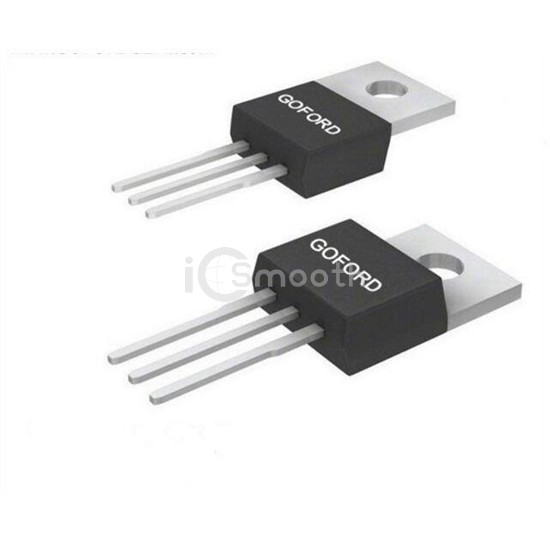

G70N04T

N40V,RD(MAX)<7M@10V,RD(MAX)<12M@

G70N04T is a Transistors - FETs, MOSFETs - Single manufactured by Goford Semiconductor. N40V,RD(MAX)<7M@10V,RD(MAX)<12M@. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 68

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	70A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	7mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	50 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4010 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	104W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220
Package / Case	TO-220-3
