Name: GA20SICP12-247
Brand: GeneSiC Semiconductor
SKU: GA20SICP12-247
Availability: InStock

REF: GA20SICP12-247 GeneSiC Semiconductor

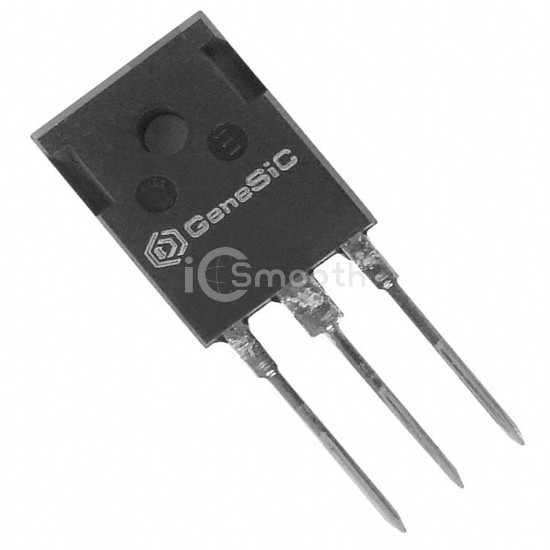

GA20SICP12-247

TRANS SJT 1200V 45A TO247AB

GA20SICP12-247 is a Transistors - FETs, MOSFETs - Single manufactured by GeneSiC Semiconductor. TRANS SJT 1200V 45A TO247AB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 4,243

Specifications

17 parameters

Product Status	Obsolete
FET Type	-
Technology	SiC (Silicon Carbide Junction Transistor)
Drain to Source Voltage (Vdss)	1200 V
Current - Continuous Drain (Id) @ 25°C	45A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	50mOhm @ 20A
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	3091 pF @ 800 V
FET Feature	-
Power Dissipation (Max)	282W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247AB
Package / Case	TO-247-3
