Name: GA100JT12-227
Brand: GeneSiC Semiconductor
SKU: GA100JT12-227
Availability: InStock

REF: GA100JT12-227 GeneSiC Semiconductor

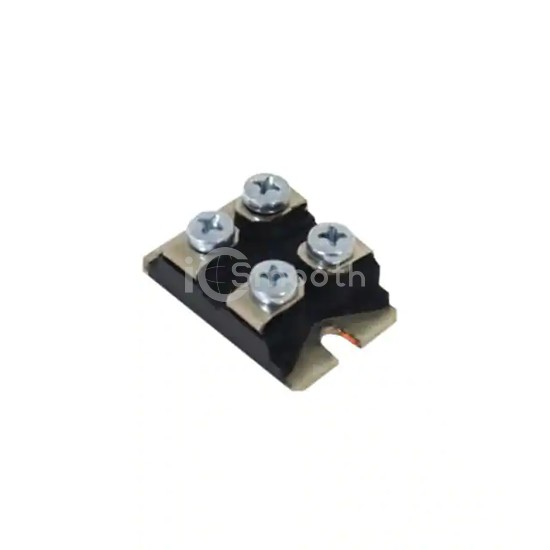

GA100JT12-227

TRANS SJT 1200V 160A SOT227

GA100JT12-227 is a Transistors - FETs, MOSFETs - Single manufactured by GeneSiC Semiconductor. TRANS SJT 1200V 160A SOT227. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-227-4, miniBLOC.

Datasheet Request a Quote

In Stock: 5,365

Specifications

17 parameters

Product Status	Obsolete
FET Type	-
Technology	SiC (Silicon Carbide Junction Transistor)
Drain to Source Voltage (Vdss)	1200 V
Current - Continuous Drain (Id) @ 25°C	160A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	10mOhm @ 100A
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	14400 pF @ 800 V
FET Feature	-
Power Dissipation (Max)	535W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Chassis Mount
Supplier Device Package	SOT-227
Package / Case	SOT-227-4, miniBLOC
