Name: G3R45MT17D
Brand: GeneSiC Semiconductor
SKU: G3R45MT17D
Price: 34.69 USD
Availability: InStock

REF: G3R45MT17D GeneSiC Semiconductor

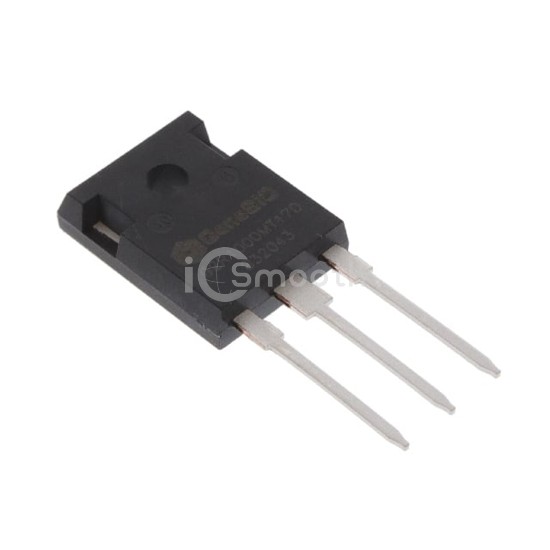

G3R45MT17D

GeneSiC Semiconductor

SIC MOSFET N-CH 61A TO247-3

G3R45MT17D is a Transistors - FETs, MOSFETs - Single manufactured by GeneSiC Semiconductor. SIC MOSFET N-CH 61A TO247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 209

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1700 V
Current - Continuous Drain (Id) @ 25°C	61A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	15V
Rds On (Max) @ Id, Vgs	58mOhm @ 40A, 15V
Vgs(th) (Max) @ Id	2.7V @ 8mA
Gate Charge (Qg) (Max) @ Vgs	182 nC @ 15 V

Vgs (Max)	±15V
Input Capacitance (Ciss) (Max) @ Vds	4523 pF @ 1000 V
FET Feature	-
Power Dissipation (Max)	438W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-3
Package / Case	TO-247-3
