Name: G3R350MT12D
Brand: GeneSiC Semiconductor
SKU: G3R350MT12D
Price: 5.03 USD
Availability: InStock

REF: G3R350MT12D GeneSiC Semiconductor

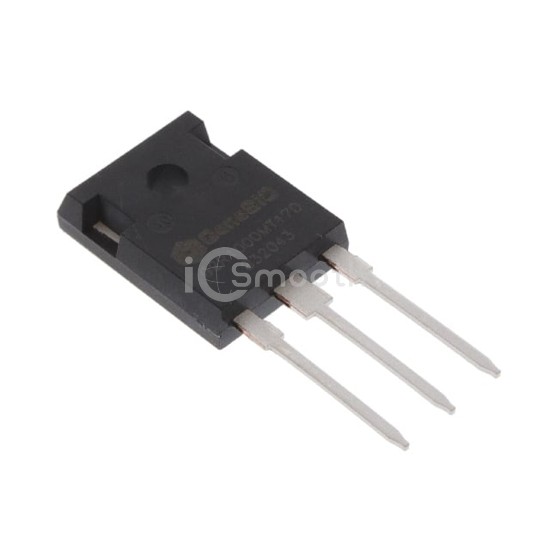

G3R350MT12D

GeneSiC Semiconductor

SIC MOSFET N-CH 11A TO247-3

G3R350MT12D is a Transistors - FETs, MOSFETs - Single manufactured by GeneSiC Semiconductor. SIC MOSFET N-CH 11A TO247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 3,245

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1200 V
Current - Continuous Drain (Id) @ 25°C	11A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	15V
Rds On (Max) @ Id, Vgs	420mOhm @ 4A, 15V
Vgs(th) (Max) @ Id	2.69V @ 2mA
Gate Charge (Qg) (Max) @ Vgs	12 nC @ 15 V

Vgs (Max)	±15V
Input Capacitance (Ciss) (Max) @ Vds	334 pF @ 800 V
FET Feature	-
Power Dissipation (Max)	74W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-3
Package / Case	TO-247-3
