Name: G3R30MT12J
Brand: GeneSiC Semiconductor
SKU: G3R30MT12J
Price: 24.20 USD
Availability: InStock

REF: G3R30MT12J GeneSiC Semiconductor

G3R30MT12J

GeneSiC Semiconductor

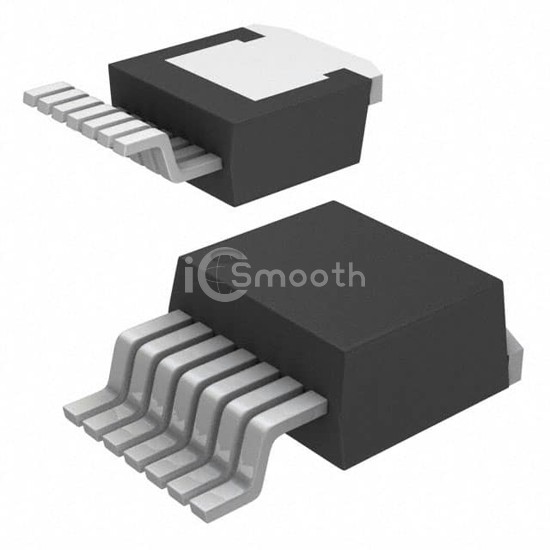

SIC MOSFET N-CH 96A TO263-7

G3R30MT12J is a Transistors - FETs, MOSFETs - Single manufactured by GeneSiC Semiconductor. SIC MOSFET N-CH 96A TO263-7. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA.

Datasheet Request a Quote

In Stock: 917

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1200 V
Current - Continuous Drain (Id) @ 25°C	96A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	15V
Rds On (Max) @ Id, Vgs	36mOhm @ 50A, 15V
Vgs(th) (Max) @ Id	2.69V @ 12mA
Gate Charge (Qg) (Max) @ Vgs	155 nC @ 15 V

Vgs (Max)	±15V
Input Capacitance (Ciss) (Max) @ Vds	3901 pF @ 800 V
FET Feature	-
Power Dissipation (Max)	459W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-263-7
Package / Case	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
