Name: G3R20MT12K
Brand: GeneSiC Semiconductor
SKU: G3R20MT12K
Price: 38.25 USD
Availability: InStock

REF: G3R20MT12K GeneSiC Semiconductor

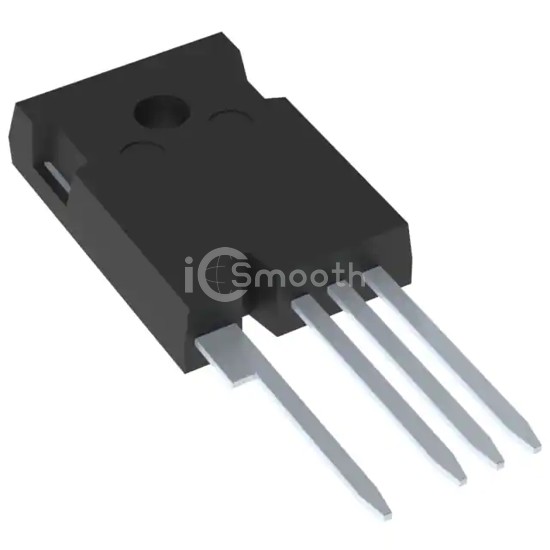

G3R20MT12K

GeneSiC Semiconductor

SIC MOSFET N-CH 128A TO247-4

G3R20MT12K is a Transistors - FETs, MOSFETs - Single manufactured by GeneSiC Semiconductor. SIC MOSFET N-CH 128A TO247-4. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-4.

Datasheet Request a Quote

In Stock: 463

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1200 V
Current - Continuous Drain (Id) @ 25°C	128A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	15V
Rds On (Max) @ Id, Vgs	24mOhm @ 60A, 15V
Vgs(th) (Max) @ Id	2.69V @ 15mA
Gate Charge (Qg) (Max) @ Vgs	219 nC @ 15 V

Vgs (Max)	±15V
Input Capacitance (Ciss) (Max) @ Vds	5873 pF @ 800 V
FET Feature	-
Power Dissipation (Max)	542W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-4
Package / Case	TO-247-4
