Name: GPIHV30SB5L
Brand: GaNPower
SKU: GPIHV30SB5L
Price: 22.00 USD
Availability: InStock

REF: GPIHV30SB5L GaNPower

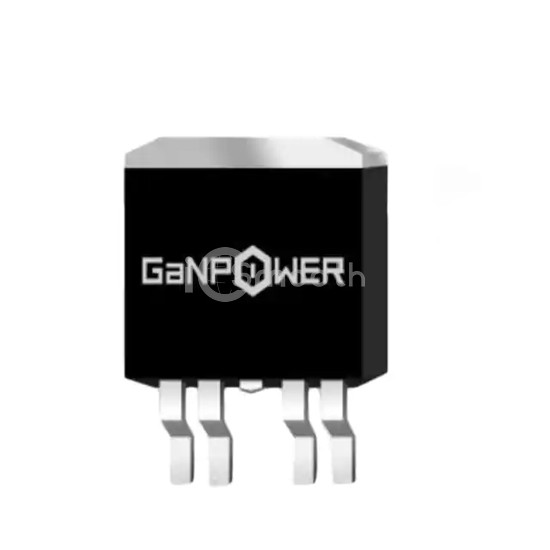

GPIHV30SB5L

GANFET N-CH 1200V 30A TO263-5L

GPIHV30SB5L is a Transistors - FETs, MOSFETs - Single manufactured by GaNPower. GANFET N-CH 1200V 30A TO263-5L. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case Die.

Datasheet Request a Quote

In Stock: 9,779

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)	1200 V
Current - Continuous Drain (Id) @ 25°C	30A
Drive Voltage (Max Rds On, Min Rds On)	6V
Rds On (Max) @ Id, Vgs	-
Vgs(th) (Max) @ Id	1.4V @ 3.5mA
Gate Charge (Qg) (Max) @ Vgs	8.25 nC @ 6 V

Vgs (Max)	+7.5V, -12V
Input Capacitance (Ciss) (Max) @ Vds	236 pF @ 400 V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Die
Package / Case	Die
