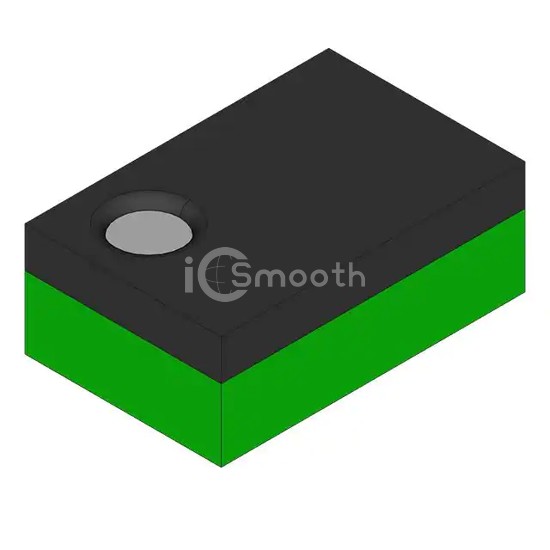

Name: NX5P2924BUK012
Brand: Freescale Semiconductor
SKU: NX5P2924BUK012
Price: 0.33 USD
Availability: InStock

REF: NX5P2924BUK012 Freescale Semiconductor

NX5P2924BUK012

Freescale Semiconductor

LOGIC CONTROLLED HIGH-SIDE POWER

NX5P2924BUK012 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Freescale Semiconductor. LOGIC CONTROLLED HIGH-SIDE POWER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - load 0.8V ~ 5.5V, package / case 6-XFBGA, WLCSP.

Datasheet Request a Quote

In Stock: 200,974

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	0.8V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	-

Current - Output (Max)	2.5A
Rds On (Typ)	14mOhm
Input Type	Inverting
Features	Load Discharge, Slew Rate Controlled
Fault Protection	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	6-WLCSP (0.87x1.37)
Package / Case	6-XFBGA, WLCSP
