Name: MC17XSF500EK
Brand: Freescale Semiconductor
SKU: MC17XSF500EK
Price: 4.65 USD
Availability: InStock

REF: MC17XSF500EK Freescale Semiconductor

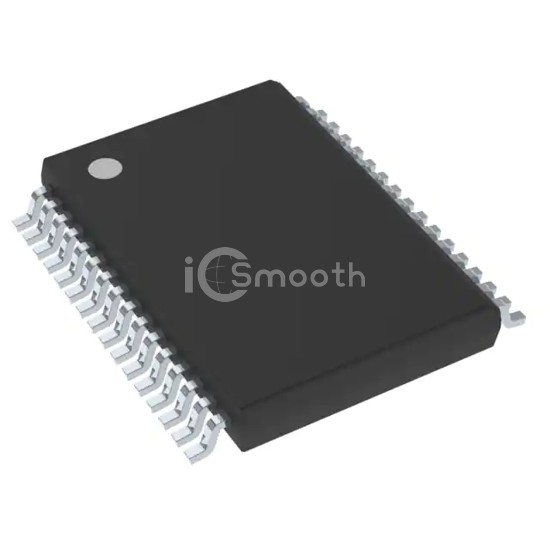

MC17XSF500EK

Freescale Semiconductor

HIGH-SIDE SWITCH, 18V, PENTA 17M

MC17XSF500EK is a PMIC - Power Distribution Switches, Load Drivers manufactured by Freescale Semiconductor. HIGH-SIDE SWITCH, 18V, PENTA 17M. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 5.5V, package / case 32-SSOP (0.295", 7.50mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 2,579

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	5
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	SPI
Voltage - Load	7V ~ 18V
Voltage - Supply (Vcc/Vdd)	4.5V ~ 5.5V

Current - Output (Max)	5.5A
Rds On (Typ)	17mOhm
Input Type	-
Features	-
Fault Protection	Current Limiting (Fixed), Open Load Detect, Over Temperature
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	32-HSOP
Package / Case	32-SSOP (0.295", 7.50mm Width) Exposed Pad
