Name: MC10XS3412CHFK
Brand: Freescale Semiconductor
SKU: MC10XS3412CHFK
Availability: InStock

REF: MC10XS3412CHFK Freescale Semiconductor

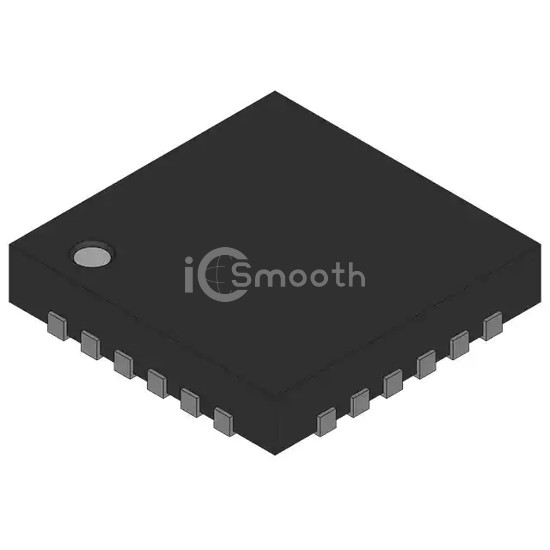

MC10XS3412CHFK

HIGH-SIDE SWITCH, 12V, DUAL 10MO

MC10XS3412CHFK is a PMIC - Power Distribution Switches, Load Drivers manufactured by Freescale Semiconductor. HIGH-SIDE SWITCH, 12V, DUAL 10MO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 24-PowerQFN.

Datasheet Request a Quote

In Stock: 6,486

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	4
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	SPI
Voltage - Load	6V ~ 20V
Voltage - Supply (Vcc/Vdd)	3V ~ 5.5V

Current - Output (Max)	-
Rds On (Typ)	10mOhm, 12mOhm
Input Type	-
Features	Internal PWM, Slew Rate Controlled, Watchdog Timer
Fault Protection	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	24-PQFN (12x12)
Package / Case	24-PowerQFN
