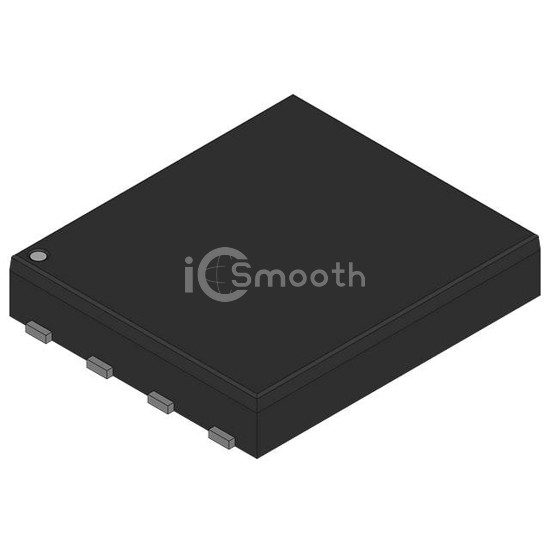

Name: NTMFS4936NCT1G
Brand: Fairchild Semiconductor
SKU: NTMFS4936NCT1G
Price: 0.30 USD
Availability: InStock

REF: NTMFS4936NCT1G Fairchild Semiconductor

NTMFS4936NCT1G

Fairchild Semiconductor

11.6A, 30V, 0.0048OHM, N-CHANNE

NTMFS4936NCT1G is a Transistors - FETs, MOSFETs - Single manufactured by Fairchild Semiconductor. 11.6A, 30V, 0.0048OHM, N-CHANNE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN, 5 Leads.

Datasheet Request a Quote

In Stock: 15,000

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	11.6A (Ta), 79A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	3.8mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	43 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3044 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	920mW (Ta), 43W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	5-DFN (5x6) (8-SOFL)
Package / Case	8-PowerTDFN, 5 Leads
