Name: NDS355AN-F169
Brand: Fairchild Semiconductor
SKU: NDS355AN-F169
Availability: InStock

REF: NDS355AN-F169 Fairchild Semiconductor

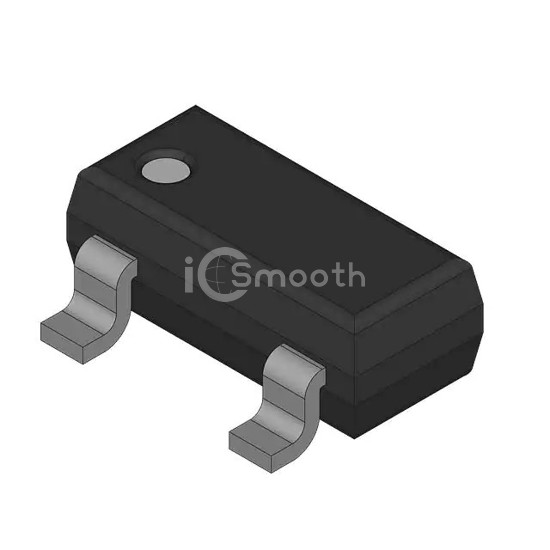

NDS355AN-F169

N-CHANNEL LOGIC LEVEL ENHANCEMEN

NDS355AN-F169 is a Transistors - FETs, MOSFETs - Single manufactured by Fairchild Semiconductor. N-CHANNEL LOGIC LEVEL ENHANCEMEN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 7,292

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	1.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	85mOhm @ 1.9A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	5 nC @ 5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	195 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-3
Package / Case	TO-236-3, SC-59, SOT-23-3
