Name: MCH3476-TL-W
Brand: Fairchild Semiconductor
SKU: MCH3476-TL-W
Price: 0.09 USD
Availability: InStock

REF: MCH3476-TL-W Fairchild Semiconductor

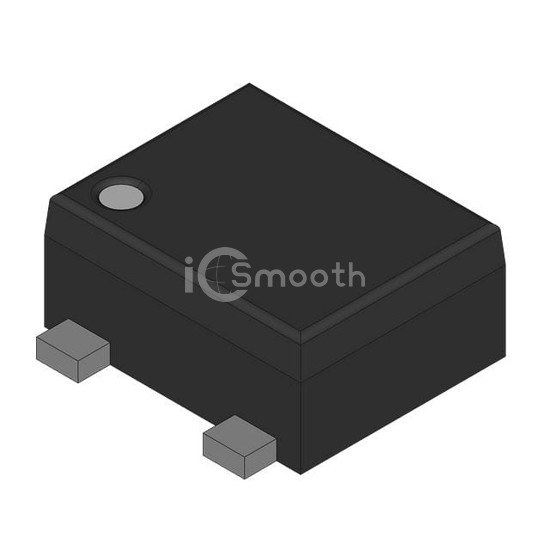

MCH3476-TL-W

Fairchild Semiconductor

MOSFET N-CH 20V 2A SC70FL/MCPH3

MCH3476-TL-W is a Transistors - FETs, MOSFETs - Single manufactured by Fairchild Semiconductor. MOSFET N-CH 20V 2A SC70FL/MCPH3. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 3-SMD, Flat Lead.

Datasheet Request a Quote

In Stock: 4,443

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	125mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id	1.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	1.8 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	128 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	800mW (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-70FL/MCPH3
Package / Case	3-SMD, Flat Lead
