Name: HCPL0601V
Brand: Fairchild Semiconductor
SKU: HCPL0601V
Price: 1.66 USD
Availability: InStock

REF: HCPL0601V Fairchild Semiconductor

HCPL0601V

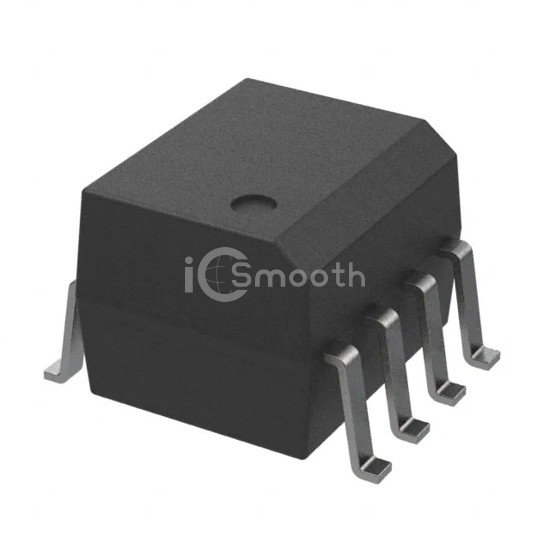

HIGH SPEED-10MBIT/S LOGIC GATE O

HCPL0601V is a Optoisolators - Logic Output manufactured by Fairchild Semiconductor. HIGH SPEED-10MBIT/S LOGIC GATE O. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 4.5V ~ 5.5V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 9,129

Tiered Pricing USD

1+ $1.6600 —

50+ $0.9654 -42%

100+ $0.8939 -46%

500+ $0.7664 -54%

1,000+ $0.7247 -56%

2,000+ $0.6894 -58%

5,000+ $0.6509 -61%

10,000+ $0.6270 -62% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	3750Vrms
Common Mode Transient Immunity (Min)	10kV/µs
Input Type	DC
Output Type	Open Collector
Current - Output / Channel	50 mA
Data Rate	10Mbps

Propagation Delay tpLH / tpHL (Max)	75ns, 75ns
Rise / Fall Time (Typ)	50ns, 12ns
Voltage - Forward (Vf) (Typ)	1.75V (Max)
Current - DC Forward (If) (Max)	50mA
Voltage - Supply	4.5V ~ 5.5V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
