Name: FSA859UCX
Brand: Fairchild Semiconductor
SKU: FSA859UCX
Price: 0.63 USD
Availability: InStock

REF: FSA859UCX Fairchild Semiconductor

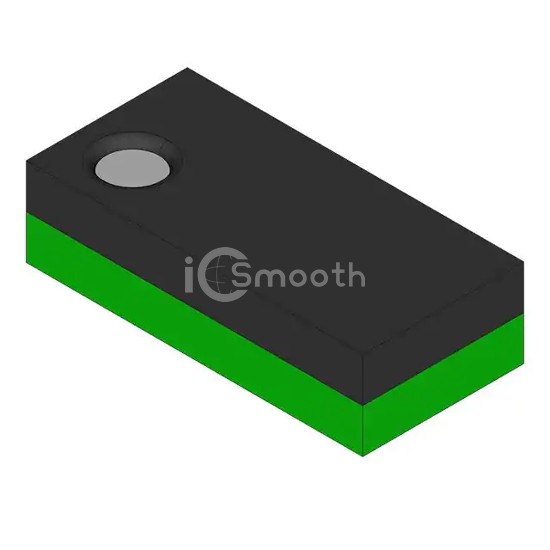

FSA859UCX

SPDT, 1 CHANNEL, CMOS, PBGA8

FSA859UCX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Fairchild Semiconductor. SPDT, 1 CHANNEL, CMOS, PBGA8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-UFBGA, WLCSP, number of circuits 1.

Datasheet Request a Quote

In Stock: 3,934

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	750mOhm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	25ns, 20ns

-3db Bandwidth	60MHz
Charge Injection	70pC
Channel Capacitance (CS(off), CD(off))	50pF
Current - Leakage (IS(off)) (Max)	10nA
Crosstalk	-55dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	8-UFBGA, WLCSP
Supplier Device Package	8-WLCSP (1.91x0.91)
