Name: FSA3259BQX
Brand: Fairchild Semiconductor
SKU: FSA3259BQX
Availability: InStock

REF: FSA3259BQX Fairchild Semiconductor

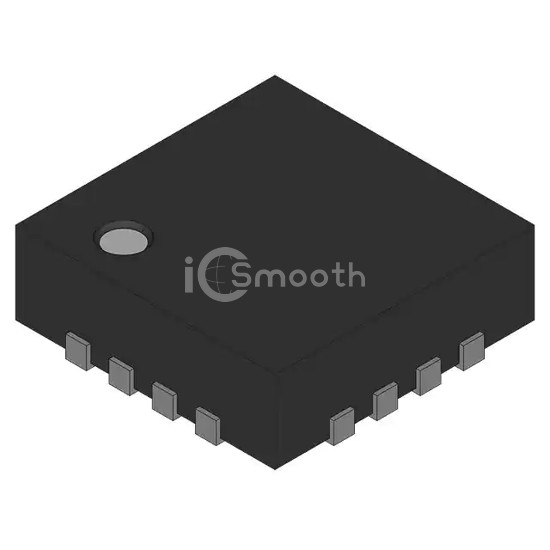

FSA3259BQX

AUDIO/VIDEO SWITCH

FSA3259BQX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Fairchild Semiconductor. AUDIO/VIDEO SWITCH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-WFQFN Exposed Pad, number of circuits 2.

Datasheet Request a Quote

In Stock: 6,349

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SP3T
Multiplexer/Demultiplexer Circuit	3:1
Number of Circuits	2
On-State Resistance (Max)	15Ohm
Channel-to-Channel Matching (ΔRon)	150mOhm
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	6.5ns, 3.7ns

-3db Bandwidth	250MHz
Charge Injection	3pC
Channel Capacitance (CS(off), CD(off))	3.6pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-60dB @ 10MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WFQFN Exposed Pad
Supplier Device Package	16-DQFN (2.5x3.5)
