Name: FSA2859UCX
Brand: Fairchild Semiconductor
SKU: FSA2859UCX
Availability: InStock

REF: FSA2859UCX Fairchild Semiconductor

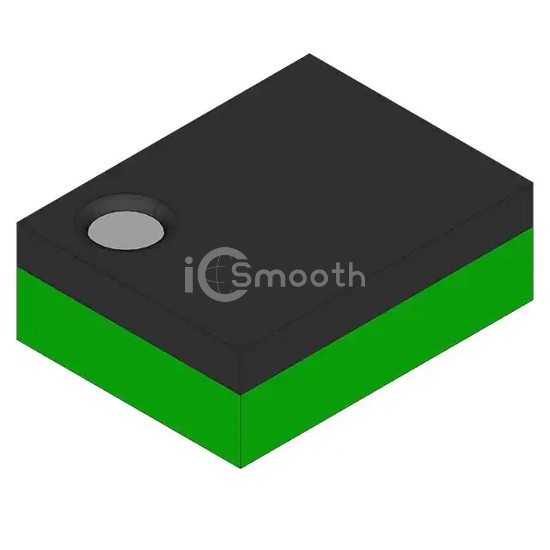

FSA2859UCX

DPDT, 2 FUNC, 2 CHANNEL, PBGA12

FSA2859UCX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Fairchild Semiconductor. DPDT, 2 FUNC, 2 CHANNEL, PBGA12. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-UFBGA, WLCSP, number of circuits 2.

Datasheet Request a Quote

In Stock: 8,542

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	DPDT
Multiplexer/Demultiplexer Circuit	2:2
Number of Circuits	2
On-State Resistance (Max)	750mOhm
Channel-to-Channel Matching (ΔRon)	50mOhm
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	25ns, 20ns

-3db Bandwidth	60MHz
Charge Injection	47pC
Channel Capacitance (CS(off), CD(off))	50pF
Current - Leakage (IS(off)) (Max)	10nA
Crosstalk	-65dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	12-UFBGA, WLCSP
Supplier Device Package	12-WLCSP (1.9x1.4)
