Name: FSA2156P6X
Brand: Fairchild Semiconductor
SKU: FSA2156P6X
Price: 0.43 USD
Availability: InStock

REF: FSA2156P6X Fairchild Semiconductor

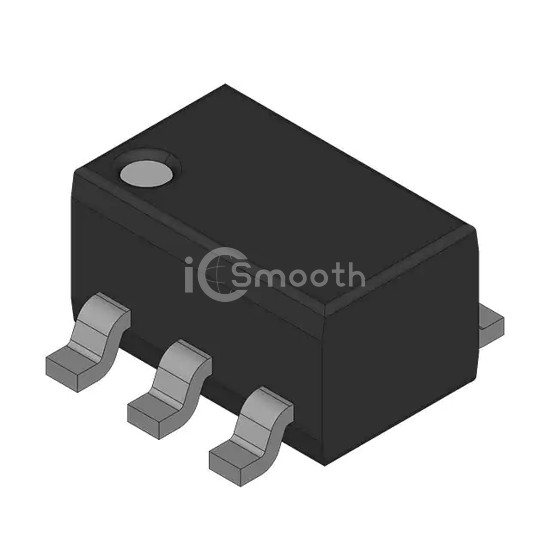

FSA2156P6X

Fairchild Semiconductor

LOW VOLTAGE SPST 0.4 OHM ANALOG

FSA2156P6X is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Fairchild Semiconductor. LOW VOLTAGE SPST 0.4 OHM ANALOG. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-TSSOP, SC-88, SOT-363, number of circuits 1.

Datasheet Request a Quote

In Stock: 218,974

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST - NO
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	1
On-State Resistance (Max)	360mOhm (Typ)
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	1.65V ~ 4.3V
Voltage - Supply, Dual (V±)	1.65V ~ 4.3V
Switch Time (Ton, Toff) (Max)	55ns, 65ns

-3db Bandwidth	80MHz
Charge Injection	6pC
Channel Capacitance (CS(off), CD(off))	38pF
Current - Leakage (IS(off)) (Max)	10nA
Crosstalk	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	6-TSSOP, SC-88, SOT-363
Supplier Device Package	SC-88 (SC-70-6)
