Name: FQPF20N06
Brand: Fairchild Semiconductor
SKU: FQPF20N06
Price: 0.59 USD
Availability: InStock

REF: FQPF20N06 Fairchild Semiconductor

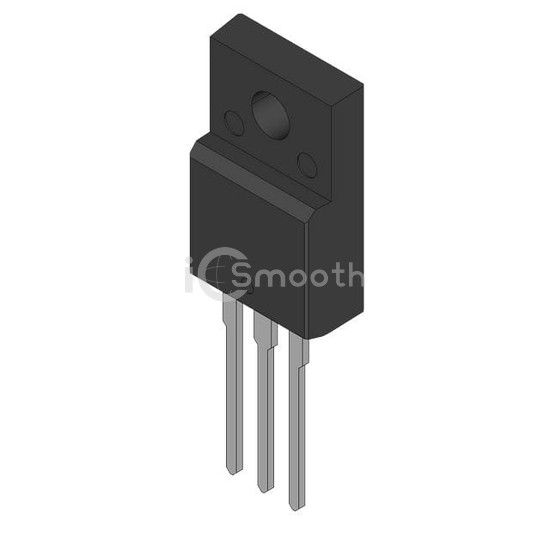

FQPF20N06

POWER FIELD-EFFECT TRANSISTOR, 1

FQPF20N06 is a Transistors - FETs, MOSFETs - Single manufactured by Fairchild Semiconductor. POWER FIELD-EFFECT TRANSISTOR, 1. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-220-3 Full Pack.

Datasheet Request a Quote

In Stock: 1,124

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	15A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	60mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	15 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	590 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	30W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220F
Package / Case	TO-220-3 Full Pack
