Name: FQL50N40
Brand: Fairchild Semiconductor
SKU: FQL50N40
Price: 7.16 USD
Availability: InStock

REF: FQL50N40 Fairchild Semiconductor

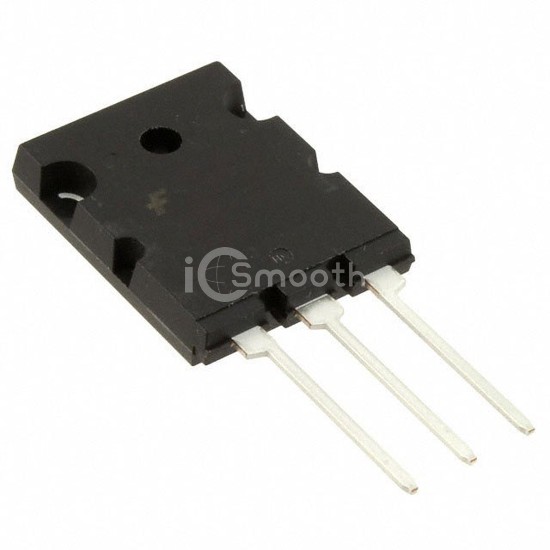

FQL50N40

MOSFET N-CH 400V 50A TO264-3

FQL50N40 is a Transistors - FETs, MOSFETs - Single manufactured by Fairchild Semiconductor. MOSFET N-CH 400V 50A TO264-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-264-3, TO-264AA.

Datasheet Request a Quote

In Stock: 338

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	400 V
Current - Continuous Drain (Id) @ 25°C	50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	75mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	210 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	7500 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	460W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	HPM F2
Package / Case	TO-264-3, TO-264AA
