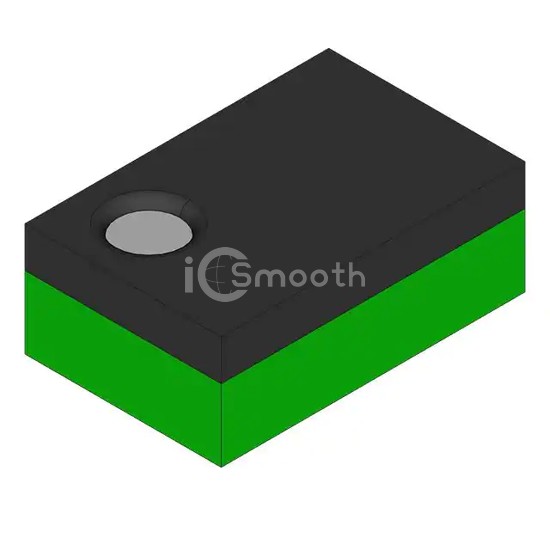

Name: FPF2194
Brand: Fairchild Semiconductor
SKU: FPF2194
Price: 0.48 USD
Availability: InStock

REF: FPF2194 Fairchild Semiconductor

FPF2194

CURRENT LIMIT LOAD SWITCH

FPF2194 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Fairchild Semiconductor. CURRENT LIMIT LOAD SWITCH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 6-UFBGA, WLCSP.

Datasheet Request a Quote

In Stock: 38,198

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	P-Channel
Interface	On/Off
Voltage - Load	1.8V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	1.5A
Rds On (Typ)	55mOhm
Input Type	Non-Inverting
Features	Status Flag
Fault Protection	Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	6-WLCSP (0.96x1.66)
Package / Case	6-UFBGA, WLCSP
