Name: FDZ7296
Brand: Fairchild Semiconductor
SKU: FDZ7296
Price: 0.67 USD
Availability: InStock

REF: FDZ7296 Fairchild Semiconductor

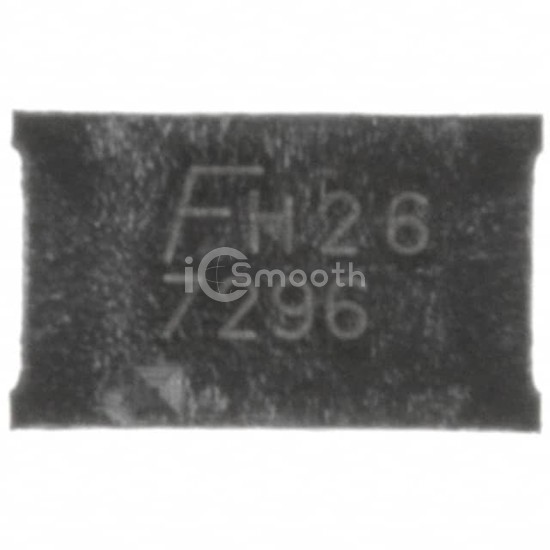

FDZ7296

MOSFET N-CH 30V 11A 18BGA

FDZ7296 is a Transistors - FETs, MOSFETs - Single manufactured by Fairchild Semiconductor. MOSFET N-CH 30V 11A 18BGA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 18-WFBGA.

Datasheet Request a Quote

In Stock: 4,835

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	11A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	8.5mOhm @ 11A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	31 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1520 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2.1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	18-BGA (2.5x4)
Package / Case	18-WFBGA
