Name: FDZ7064N
Brand: Fairchild Semiconductor
SKU: FDZ7064N
Price: 1.28 USD
Availability: InStock

REF: FDZ7064N Fairchild Semiconductor

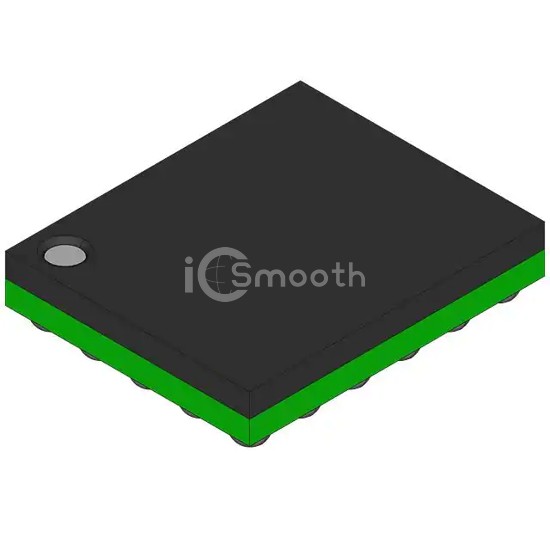

FDZ7064N

MOSFET N-CH 30V 13.5A 30BGA

FDZ7064N is a Transistors - FETs, MOSFETs - Single manufactured by Fairchild Semiconductor. MOSFET N-CH 30V 13.5A 30BGA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 30-WFBGA.

Datasheet Request a Quote

In Stock: 6,000

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	13.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	7mOhm @ 14.5A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	43 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	3843 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2.2W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	30-BGA (4x3.5)
Package / Case	30-WFBGA
