Name: FDZ3N513ZT
Brand: Fairchild Semiconductor
SKU: FDZ3N513ZT
Price: 0.32 USD
Availability: InStock

REF: FDZ3N513ZT Fairchild Semiconductor

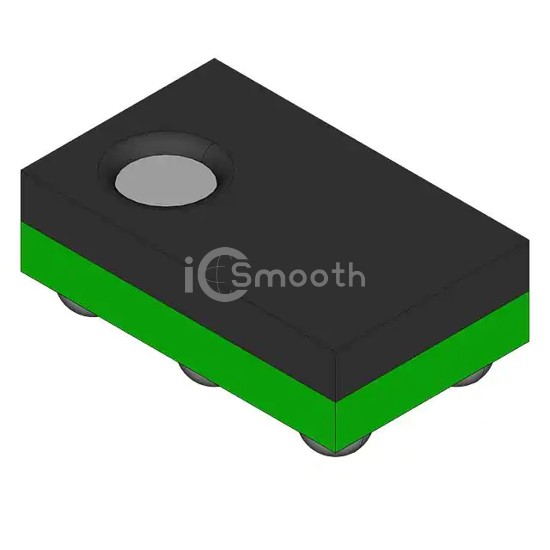

FDZ3N513ZT

Fairchild Semiconductor

MOSFET P-CH 30V 1.1A 4WLCSP

FDZ3N513ZT is a Transistors - FETs, MOSFETs - Single manufactured by Fairchild Semiconductor. MOSFET P-CH 30V 1.1A 4WLCSP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 4-XFBGA, WLCSP.

Datasheet Request a Quote

In Stock: 25,469

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	1.1A
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	462mOhm @ 300mA, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1 nC @ 4.5 V

Vgs (Max)	+5.5V, -300mV
Input Capacitance (Ciss) (Max) @ Vds	85 pF @ 15 V
FET Feature	Schottky Diode (Isolated)
Power Dissipation (Max)	1W (Ta)
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	4-WLCSP (1x1)
Package / Case	4-XFBGA, WLCSP
