Name: FDZ372NZ
Brand: Fairchild Semiconductor
SKU: FDZ372NZ
Price: 1.26 USD
Availability: InStock

REF: FDZ372NZ Fairchild Semiconductor

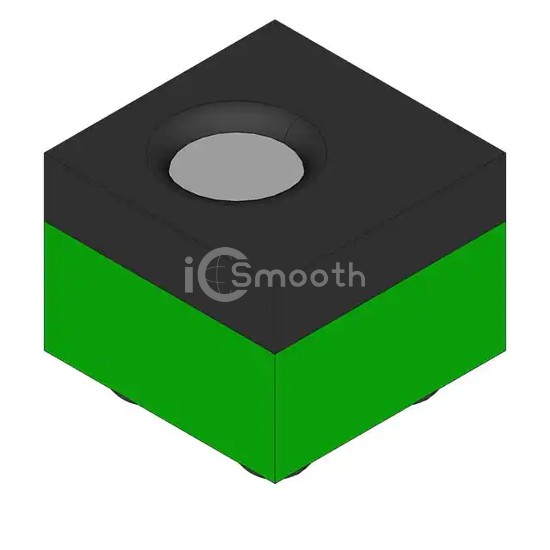

FDZ372NZ

MOSFET N-CH 20V 4.7A 4WLCSP

FDZ372NZ is a Transistors - FETs, MOSFETs - Single manufactured by Fairchild Semiconductor. MOSFET N-CH 20V 4.7A 4WLCSP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-XFBGA, WLCSP.

Datasheet Request a Quote

In Stock: 978,110

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	4.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	50mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	9.8 nC @ 4.5 V

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	685 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1.7W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	4-WLCSP (1x1)
Package / Case	4-XFBGA, WLCSP
