Name: FDZ294N
Brand: Fairchild Semiconductor
SKU: FDZ294N
Price: 0.96 USD
Availability: InStock

REF: FDZ294N Fairchild Semiconductor

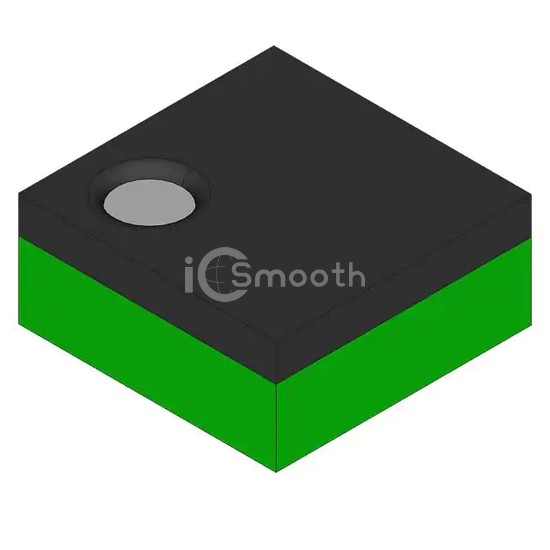

FDZ294N

MOSFET N-CH 20V 6A 9BGA

FDZ294N is a Transistors - FETs, MOSFETs - Single manufactured by Fairchild Semiconductor. MOSFET N-CH 20V 6A 9BGA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 9-VFBGA.

Datasheet Request a Quote

In Stock: 53,580

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	23mOhm @ 6A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	670 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1.7W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	9-BGA (1.5x1.6)
Package / Case	9-VFBGA
