Name: FDZ206P
Brand: Fairchild Semiconductor
SKU: FDZ206P
Price: 0.51 USD
Availability: InStock

REF: FDZ206P Fairchild Semiconductor

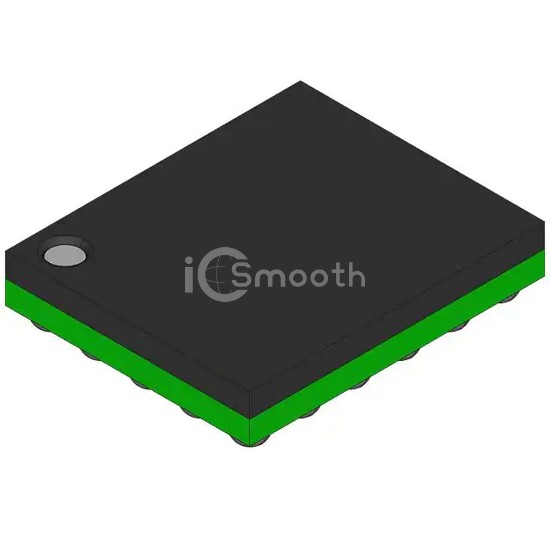

FDZ206P

MOSFET P-CH 20V 13A 30BGA

FDZ206P is a Transistors - FETs, MOSFETs - Single manufactured by Fairchild Semiconductor. MOSFET P-CH 20V 13A 30BGA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 30-WFBGA.

Datasheet Request a Quote

In Stock: 369,292

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	13A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	9.5mOhm @ 13A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	53 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	4280 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	2.2W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	30-BGA (4x3.5)
Package / Case	30-WFBGA
