Name: FDZ202P
Brand: Fairchild Semiconductor
SKU: FDZ202P
Price: 0.27 USD
Availability: InStock

REF: FDZ202P Fairchild Semiconductor

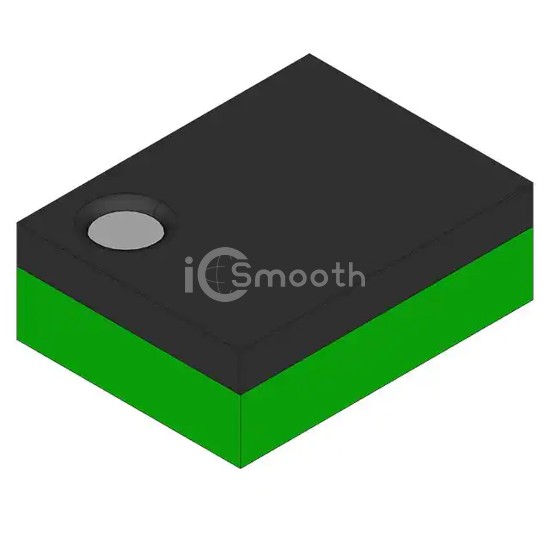

FDZ202P

MOSFET P-CH 20V 5.5A 12BGA

FDZ202P is a Transistors - FETs, MOSFETs - Single manufactured by Fairchild Semiconductor. MOSFET P-CH 20V 5.5A 12BGA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 12-WFBGA.

Datasheet Request a Quote

In Stock: 155,615

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	5.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	45mOhm @ 5.5A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	13 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	884 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	2W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	12-BGA (2x2.5)
Package / Case	12-WFBGA
