Name: FDZ197PZ
Brand: Fairchild Semiconductor
SKU: FDZ197PZ
Price: 0.23 USD
Availability: InStock

REF: FDZ197PZ Fairchild Semiconductor

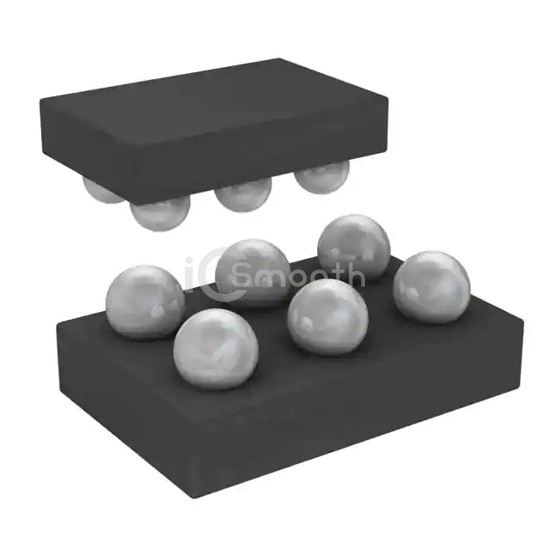

FDZ197PZ

3.8A, 20V, P-CHANNEL, MOSFET

FDZ197PZ is a Transistors - FETs, MOSFETs - Single manufactured by Fairchild Semiconductor. 3.8A, 20V, P-CHANNEL, MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UFBGA, WLCSP.

Datasheet Request a Quote

In Stock: 29,400

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	3.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	64mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	25 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	1570 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1.9W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-WLCSP (1.0x1.5)
Package / Case	6-UFBGA, WLCSP
