Name: FDN363N
Brand: Fairchild Semiconductor
SKU: FDN363N
Price: 0.17 USD
Availability: InStock

REF: FDN363N Fairchild Semiconductor

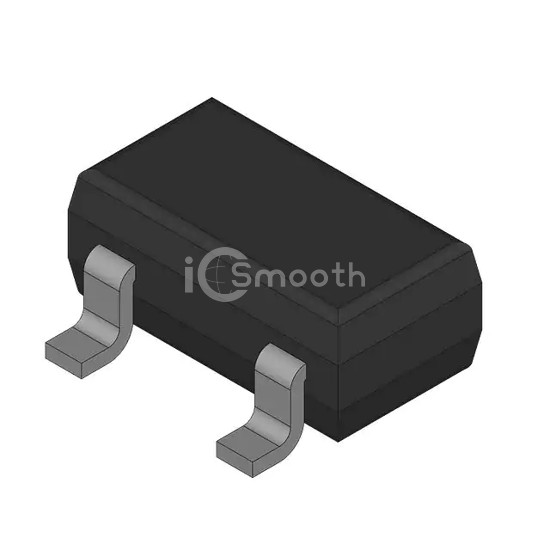

FDN363N

N-CHANNEL POWER MOSFET

FDN363N is a Transistors - FETs, MOSFETs - Single manufactured by Fairchild Semiconductor. N-CHANNEL POWER MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 58,788

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	1A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	240mOhm @ 1A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	5.2 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	200 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	500mW (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SuperSOT™-3
Package / Case	TO-236-3, SC-59, SOT-23-3
