Name: FDME910PZT
Brand: Fairchild Semiconductor
SKU: FDME910PZT
Availability: InStock

REF: FDME910PZT Fairchild Semiconductor

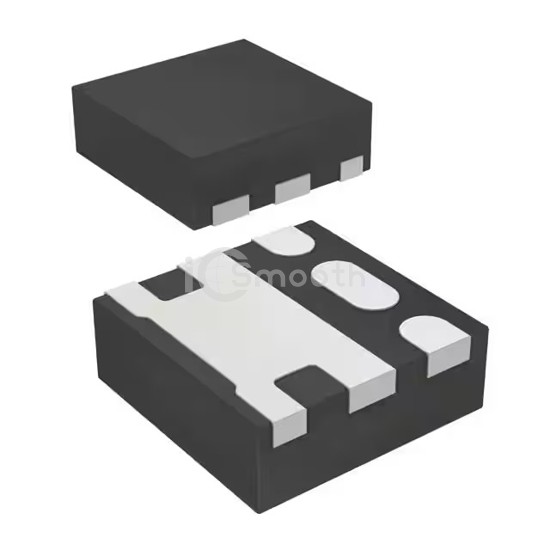

FDME910PZT

SMALL SIGNAL FIELD-EFFECT TRANSI

FDME910PZT is a Transistors - FETs, MOSFETs - Single manufactured by Fairchild Semiconductor. SMALL SIGNAL FIELD-EFFECT TRANSI. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerUFDFN.

Datasheet Request a Quote

In Stock: 2,357

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	24mOhm @ 8A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	21 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	2110 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	2.1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	MicroFet 1.6x1.6 Thin
Package / Case	6-PowerUFDFN
