Name: FDMB668P
Brand: Fairchild Semiconductor
SKU: FDMB668P
Price: 0.25 USD
Availability: InStock

REF: FDMB668P Fairchild Semiconductor

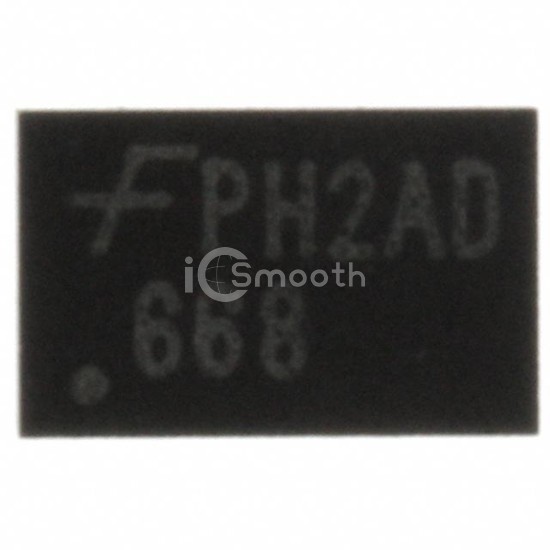

FDMB668P

MOSFET P-CH 20V 6.1A 8MLP

FDMB668P is a Transistors - FETs, MOSFETs - Single manufactured by Fairchild Semiconductor. MOSFET P-CH 20V 6.1A 8MLP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 10,643

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	6.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	35mOhm @ 6.1A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	59 nC @ 10 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	2085 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1.9W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-MLP, MicroFET (3x1.9)
Package / Case	8-PowerWDFN
