Name: FDMA7628
Brand: Fairchild Semiconductor
SKU: FDMA7628
Price: 0.29 USD
Availability: InStock

REF: FDMA7628 Fairchild Semiconductor

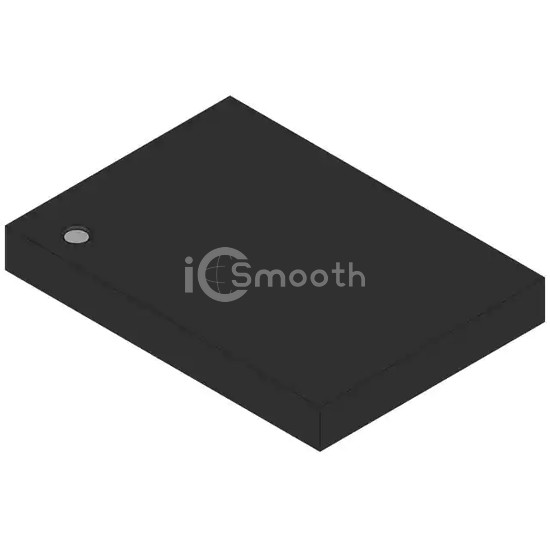

FDMA7628

FDMA7628 - SINGLE N-CHANNEL 1.5

FDMA7628 is a Transistors - FETs, MOSFETs - Single manufactured by Fairchild Semiconductor. FDMA7628 - SINGLE N-CHANNEL 1.5. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 90,000

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	9.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	14.5mOhm @ 9.4A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	17.5 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	1680 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1.9W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-MicroFET (2x2)
Package / Case	6-WDFN Exposed Pad
