Name: FDG316P
Brand: Fairchild Semiconductor
SKU: FDG316P
Availability: InStock

REF: FDG316P Fairchild Semiconductor

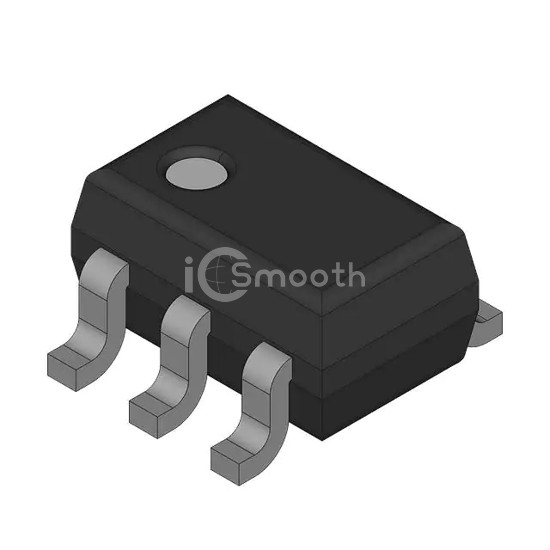

FDG316P

SMALL SIGNAL FIELD-EFFECT TRANSI

FDG316P is a Transistors - FETs, MOSFETs - Single manufactured by Fairchild Semiconductor. SMALL SIGNAL FIELD-EFFECT TRANSI. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-TSSOP, SC-88, SOT-363.

Datasheet Request a Quote

In Stock: 1,576

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	1.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	190mOhm @ 1.6A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	5 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	165 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	750mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-88 (SC-70-6)
Package / Case	6-TSSOP, SC-88, SOT-363
