Name: FDG313N
Brand: Fairchild Semiconductor
SKU: FDG313N
Availability: InStock

REF: FDG313N Fairchild Semiconductor

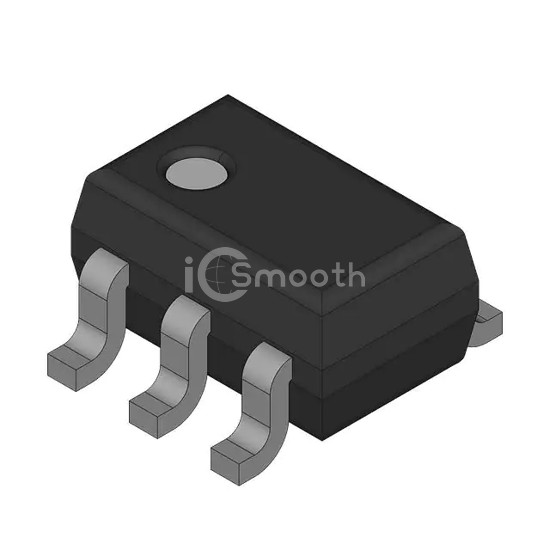

FDG313N

0.95A, 25V, N-CHANNEL, MOSFET

FDG313N is a Transistors - FETs, MOSFETs - Single manufactured by Fairchild Semiconductor. 0.95A, 25V, N-CHANNEL, MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-TSSOP, SC-88, SOT-363.

Datasheet Request a Quote

In Stock: 9,168

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	950mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.7V, 4.5V
Rds On (Max) @ Id, Vgs	450mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	2.3 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	50 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	750mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-88 (SC-70-6)
Package / Case	6-TSSOP, SC-88, SOT-363
