Name: FDFMJ2P023Z
Brand: Fairchild Semiconductor
SKU: FDFMJ2P023Z
Price: 0.30 USD
Availability: InStock

REF: FDFMJ2P023Z Fairchild Semiconductor

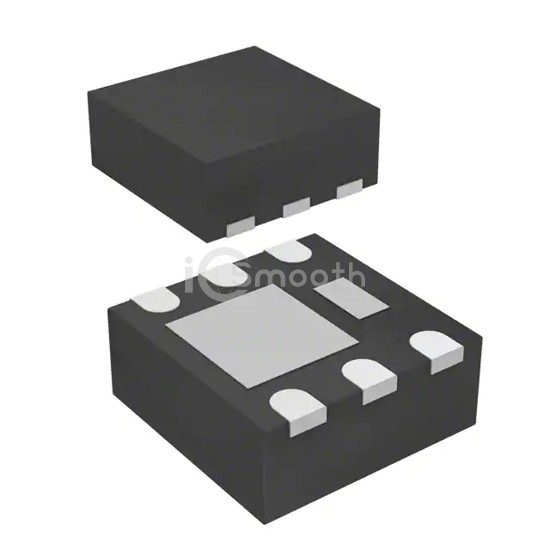

FDFMJ2P023Z

Fairchild Semiconductor

MOSFET P-CH 20V 2.9A SC75 MICROF

FDFMJ2P023Z is a Transistors - FETs, MOSFETs - Single manufactured by Fairchild Semiconductor. MOSFET P-CH 20V 2.9A SC75 MICROF. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 29,990

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	2.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	112mOhm @ 2.9A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6.5 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	400 pF @ 10 V
FET Feature	Schottky Diode (Isolated)
Power Dissipation (Max)	1.4W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-75, MicroFET
Package / Case	6-WFDFN Exposed Pad
