Name: FDB8444TS
Brand: Fairchild Semiconductor
SKU: FDB8444TS
Price: 0.85 USD
Availability: InStock

REF: FDB8444TS Fairchild Semiconductor

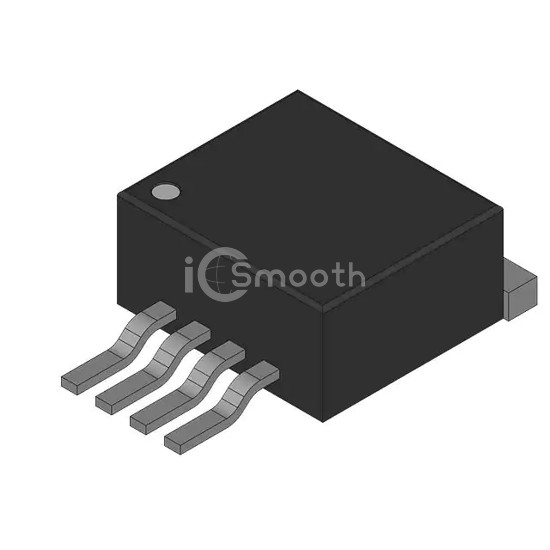

FDB8444TS

MOSFET N-CH 40V 20A/70A TO263-5

FDB8444TS is a Transistors - FETs, MOSFETs - Single manufactured by Fairchild Semiconductor. MOSFET N-CH 40V 20A/70A TO263-5. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA.

Datasheet Request a Quote

In Stock: 7,415

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	20A (Ta), 70A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	5mOhm @ 70A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	338 nC @ 20 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	8410 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	181W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-263-5
Package / Case	TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
