Name: 2N7002MTF
Brand: Fairchild Semiconductor
SKU: 2N7002MTF
Price: 0.04 USD
Availability: InStock

REF: 2N7002MTF Fairchild Semiconductor

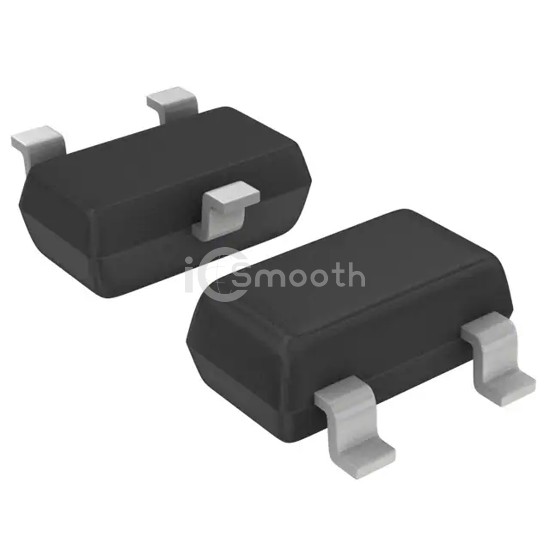

2N7002MTF

MOSFET N-CH 60V 115MA SOT23-3

2N7002MTF is a Transistors - FETs, MOSFETs - Single manufactured by Fairchild Semiconductor. MOSFET N-CH 60V 115MA SOT23-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Request a Quote

In Stock: 2,179

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	115mA (Tc)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	7.5Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id	3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	50 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	200mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-3
Package / Case	TO-236-3, SC-59, SOT-23-3
