Name: H11L1M
Brand: Everlight Electronics Co Ltd
SKU: H11L1M
Price: 1.03 USD
Availability: InStock

REF: H11L1M Everlight Electronics Co Ltd

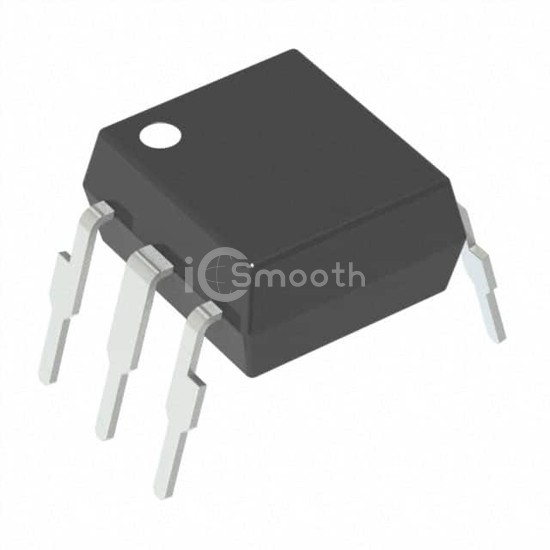

H11L1M

OPTOISO 5KV OPEN COLLECTOR 6DIP

H11L1M is a Optoisolators - Logic Output manufactured by Everlight Electronics Co Ltd. OPTOISO 5KV OPEN COLLECTOR 6DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - supply 3V ~ 16V, package / case 6-DIP (0.400", 10.16mm).

Datasheet Request a Quote

In Stock: 20

Tiered Pricing USD

1+ $1.0300 —

50+ $0.5820 -43%

100+ $0.5352 -48%

500+ $0.4514 -56%

1,000+ $0.4239 -59%

2,000+ $0.4006 -61%

5,000+ $0.3752 -64%

10,000+ $0.3594 -65%

25,000+ $0.3421 -67% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	-
Input Type	DC
Output Type	Open Collector
Current - Output / Channel	50 mA
Data Rate	1MHz

Propagation Delay tpLH / tpHL (Max)	4µs, 4µs
Rise / Fall Time (Typ)	100ns, 100ns
Voltage - Forward (Vf) (Typ)	1.15V
Current - DC Forward (If) (Max)	60mA
Voltage - Supply	3V ~ 16V
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.400", 10.16mm)
Supplier Device Package	6-DIP
