H11L1-V

In Stock: 47

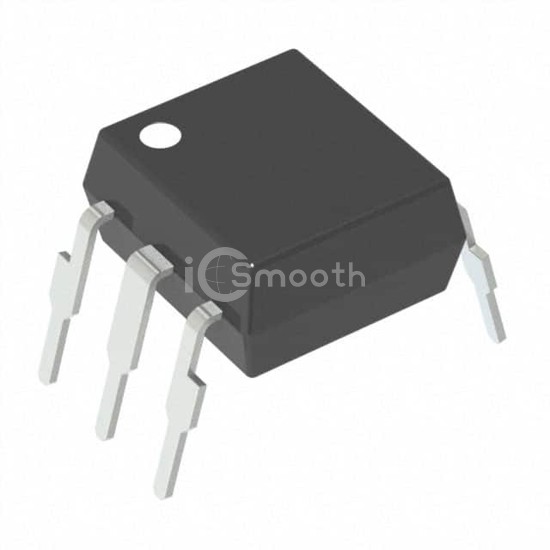

H11L1-V - Everlight Electronics Co Ltd - Optoisolators - Logic Output
REF: H11L1-V Everlight Electronics Co Ltd
H11L1-V

Everlight Electronics Co Ltd

OPTOISO 5KV OPEN COLLECTOR 6DIP

H11L1-V is a Optoisolators - Logic Output manufactured by Everlight Electronics Co Ltd. OPTOISO 5KV OPEN COLLECTOR 6DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - supply 3V ~ 16V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 47

Tiered Pricing USD
1+ $1.5000 —
65+ $0.8371 -44%
130+ $0.7758 -48%
520+ $0.6793 -55%
1,040+ $0.6416 -57%
2,015+ $0.6111 -59%
5,005+ $0.5762 -62%
10,010+ $0.5544 -63% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Inputs - Side 1/Side 21/0
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)-
Input TypeDC
Output TypeOpen Collector
Current - Output / Channel50 mA
Data Rate1MHz
Propagation Delay tpLH / tpHL (Max)4µs, 4µs
Rise / Fall Time (Typ)100ns, 100ns
Voltage - Forward (Vf) (Typ)1.15V
Current - DC Forward (If) (Max)60mA
Voltage - Supply3V ~ 16V
Operating Temperature-55°C ~ 100°C
Mounting TypeThrough Hole
Package / Case6-DIP (0.300", 7.62mm)
Supplier Device Package6-DIP
