ELW2601

In Stock: 40

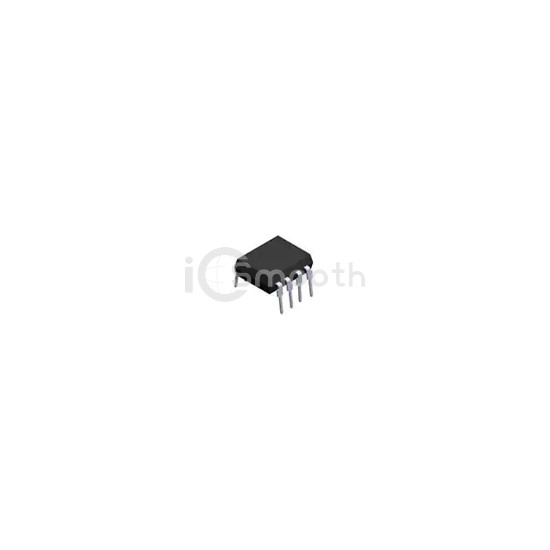

ELW2601 - Everlight Electronics Co Ltd - Optoisolators - Logic Output
REF: ELW2601 Everlight Electronics Co Ltd
ELW2601

Everlight Electronics Co Ltd

OPTOISO 5KV OPEN COLLECTOR 8DIP

ELW2601 is a Optoisolators - Logic Output manufactured by Everlight Electronics Co Ltd. OPTOISO 5KV OPEN COLLECTOR 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply 7V, package / case 8-DIP (0.400", 10.16mm).

Datasheet Request a Quote

In Stock: 40

Tiered Pricing USD
1+ $4.2200 —
40+ $2.6843 -36%
120+ $2.4275 -42%
520+ $2.1741 -48%
1,000+ $2.0869 -51%
2,000+ $2.0082 -52%
5,000+ $1.9226 -54% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Inputs - Side 1/Side 21/0
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)5kV/µs
Input TypeDC
Output TypeOpen Collector
Current - Output / Channel50 mA
Data Rate10Mbps
Propagation Delay tpLH / tpHL (Max)100ns, 100ns
Rise / Fall Time (Typ)40ns, 10ns
Voltage - Forward (Vf) (Typ)1.4V
Current - DC Forward (If) (Max)50mA
Voltage - Supply7V
Operating Temperature-40°C ~ 85°C
Mounting TypeThrough Hole
Package / Case8-DIP (0.400", 10.16mm)
Supplier Device Package8-DIP
