Name: EL2631
Brand: Everlight Electronics Co Ltd
SKU: EL2631
Price: 3.80 USD
Availability: InStock

REF: EL2631 Everlight Electronics Co Ltd

EL2631

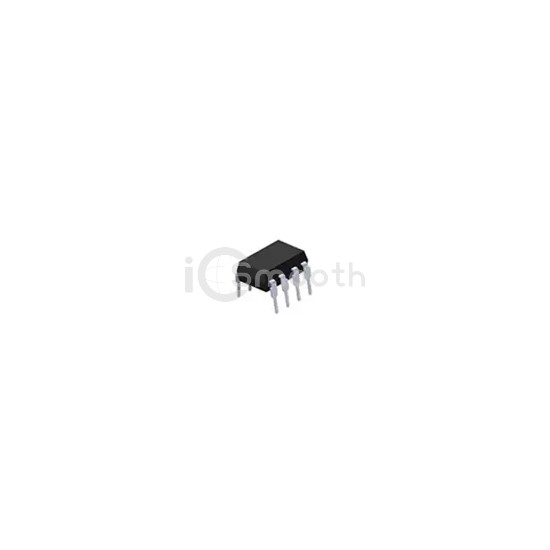

OPTOISO 5KV 2CH OPN COLL 8-DIP

EL2631 is a Optoisolators - Logic Output manufactured by Everlight Electronics Co Ltd. OPTOISO 5KV 2CH OPN COLL 8-DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - supply 7V, package / case 8-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 67

Tiered Pricing USD

1+ $3.8000 —

45+ $2.3671 -38%

135+ $2.1392 -44%

540+ $1.9246 -49%

1,035+ $1.8460 -51%

2,025+ $1.7768 -53%

5,040+ $1.6991 -55% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	2
Inputs - Side 1/Side 2	2/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	10kV/µs
Input Type	DC
Output Type	Open Collector
Current - Output / Channel	50 mA
Data Rate	10Mbps

Propagation Delay tpLH / tpHL (Max)	100ns, 100ns
Rise / Fall Time (Typ)	40ns, 10ns
Voltage - Forward (Vf) (Typ)	1.4V
Current - DC Forward (If) (Max)	20mA
Voltage - Supply	7V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-DIP
