EL2630-V

In Stock: 25

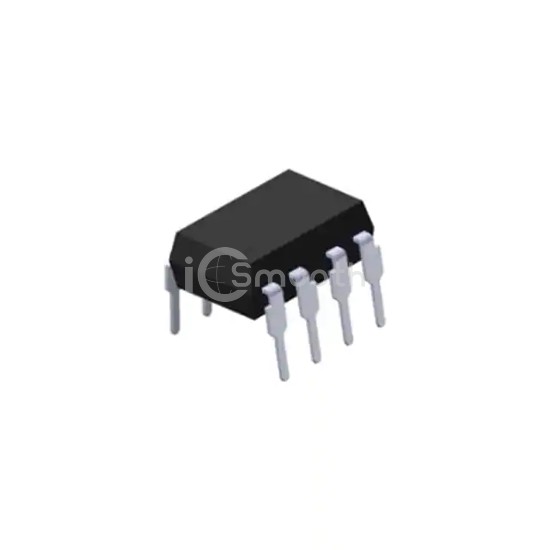

EL2630-V - Everlight Electronics Co Ltd - Optoisolators - Logic Output
REF: EL2630-V Everlight Electronics Co Ltd
EL2630-V

Everlight Electronics Co Ltd

OPTOISO 5KV OPEN COLLECTOR 8DIP

EL2630-V is a Optoisolators - Logic Output manufactured by Everlight Electronics Co Ltd. OPTOISO 5KV OPEN COLLECTOR 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - supply 7V, package / case 8-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 25

Tiered Pricing USD
1+ $4.5700 —
45+ $2.8893 -37%
135+ $2.6220 -43%
540+ $2.3707 -48%
1,035+ $2.2786 -50%
2,025+ $2.1976 -52% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels2
Inputs - Side 1/Side 22/0
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)5kV/µs
Input TypeDC
Output TypeOpen Collector
Current - Output / Channel50 mA
Data Rate10Mbps
Propagation Delay tpLH / tpHL (Max)100ns, 100ns
Rise / Fall Time (Typ)40ns, 10ns
Voltage - Forward (Vf) (Typ)1.4V
Current - DC Forward (If) (Max)20mA
Voltage - Supply7V
Operating Temperature-40°C ~ 100°C
Mounting TypeThrough Hole
Package / Case8-DIP (0.300", 7.62mm)
Supplier Device Package8-DIP
