Name: EL2601
Brand: Everlight Electronics Co Ltd
SKU: EL2601
Price: 2.05 USD
Availability: InStock

REF: EL2601 Everlight Electronics Co Ltd

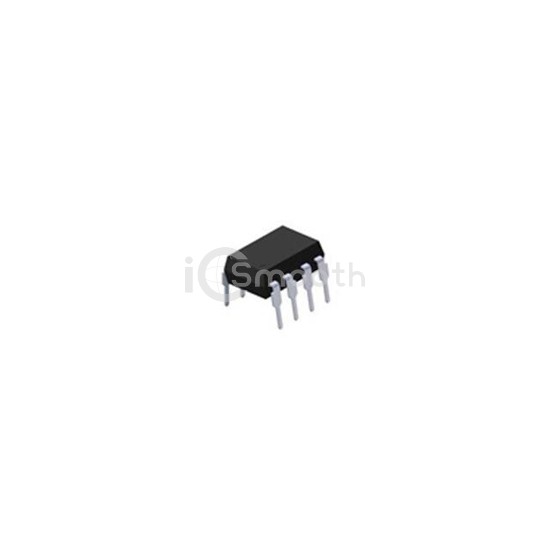

EL2601

OPTOISO 5KV OPEN COLLECTOR 8DIP

EL2601 is a Optoisolators - Logic Output manufactured by Everlight Electronics Co Ltd. OPTOISO 5KV OPEN COLLECTOR 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply 7V, package / case 8-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 5

Tiered Pricing USD

1+ $2.0500 —

45+ $1.2213 -40%

135+ $1.0880 -47%

540+ $0.9621 -53%

1,035+ $0.9158 -55%

2,025+ $0.8751 -57%

5,040+ $0.8293 -60%

10,035+ $0.8009 -61% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	5kV/µs
Input Type	DC
Output Type	Open Collector
Current - Output / Channel	50 mA
Data Rate	10Mbps

Propagation Delay tpLH / tpHL (Max)	75ns, 75ns
Rise / Fall Time (Typ)	40ns, 10ns
Voltage - Forward (Vf) (Typ)	1.4V
Current - DC Forward (If) (Max)	50mA
Voltage - Supply	7V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-DIP
