EPC8010

In Stock: 27,022
EPC8010 - EPC - Transistors - FETs, MOSFETs - Single
REF: EPC8010 EPC

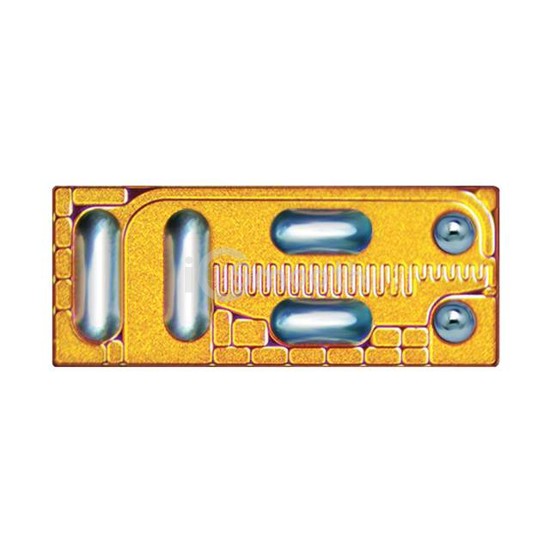

EPC8010

EPC

GANFET N-CH 100V 4A DIE

EPC8010 is a Transistors - FETs, MOSFETs - Single manufactured by EPC. GANFET N-CH 100V 4A DIE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case Die.

Datasheet Request a Quote

In Stock: 27,022

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyGaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)5V
Rds On (Max) @ Id, Vgs160mOhm @ 500mA, 5V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.48 nC @ 5 V
Vgs (Max)+6V, -4V
Input Capacitance (Ciss) (Max) @ Vds55 pF @ 50 V
FET Feature-
Power Dissipation (Max)-
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDie
Package / CaseDie
