Name: EPC2302ENGRT
Brand: EPC
SKU: EPC2302ENGRT
Availability: InStock

REF: EPC2302ENGRT EPC

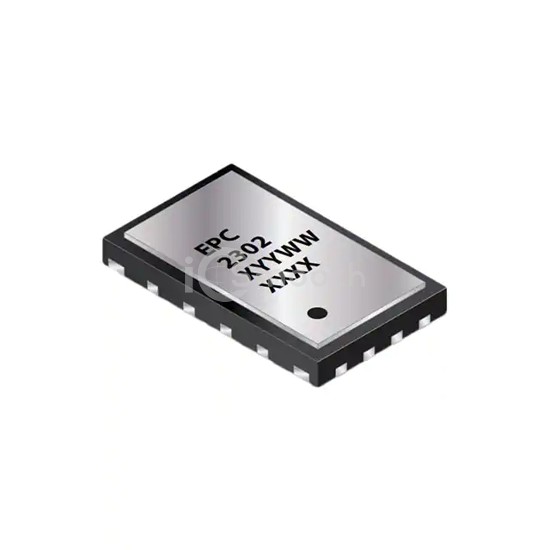

EPC2302ENGRT

TRANS GAN 100V DIE .0019OHM

EPC2302ENGRT is a Transistors - FETs, MOSFETs - Single manufactured by EPC. TRANS GAN 100V DIE .0019OHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 7-PowerWQFN.

Datasheet Request a Quote

In Stock: 6,869

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	101A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	5V
Rds On (Max) @ Id, Vgs	1.8mOhm @ 50A, 5V
Vgs(th) (Max) @ Id	2.5V @ 14mA
Gate Charge (Qg) (Max) @ Vgs	23 nC @ 5 V

Vgs (Max)	+6V, -4V
Input Capacitance (Ciss) (Max) @ Vds	3200 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	7-QFN (3x5)
Package / Case	7-PowerWQFN
